Description

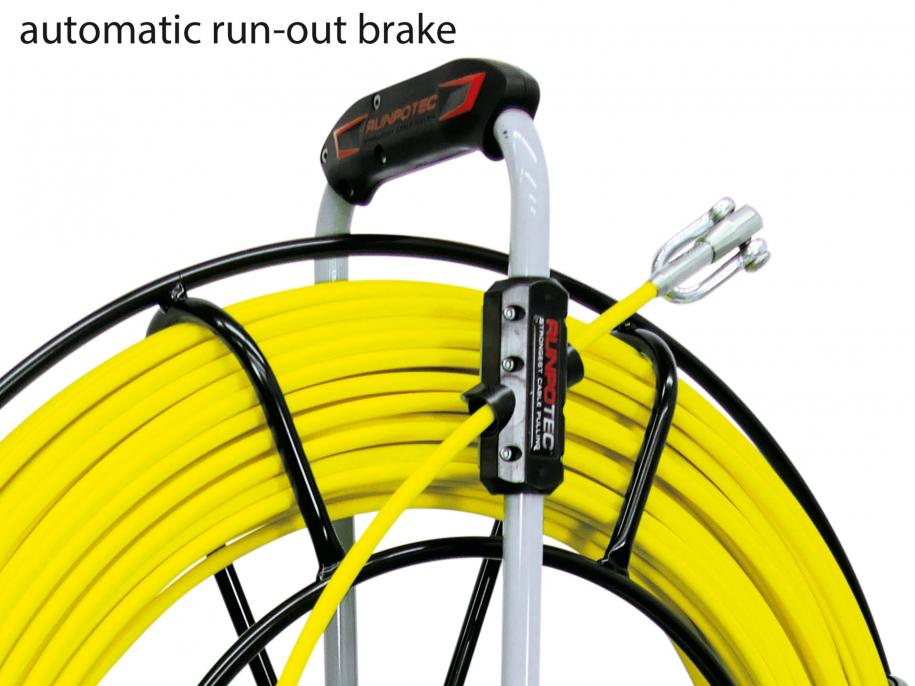

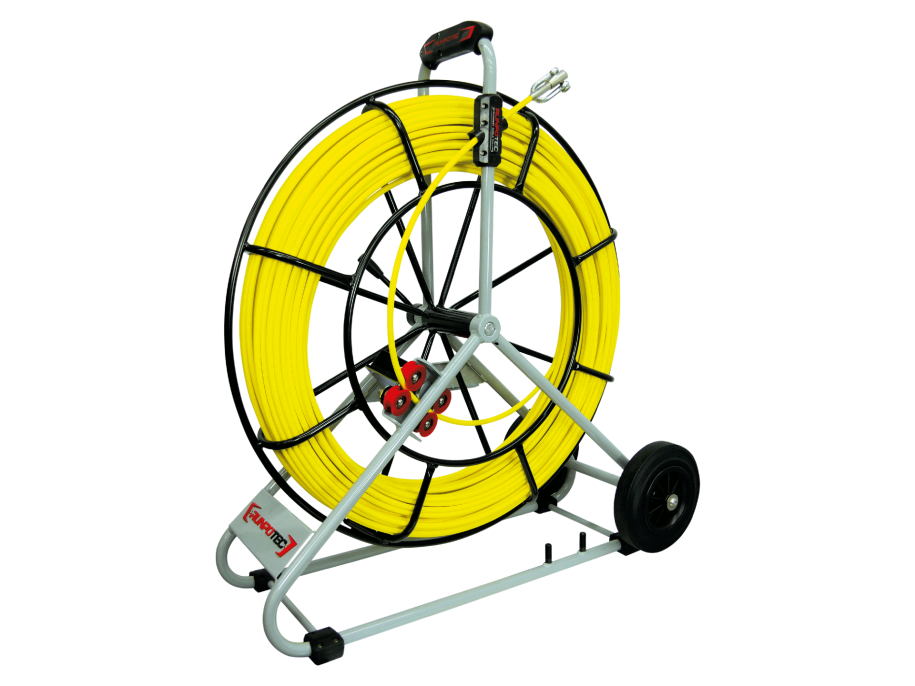

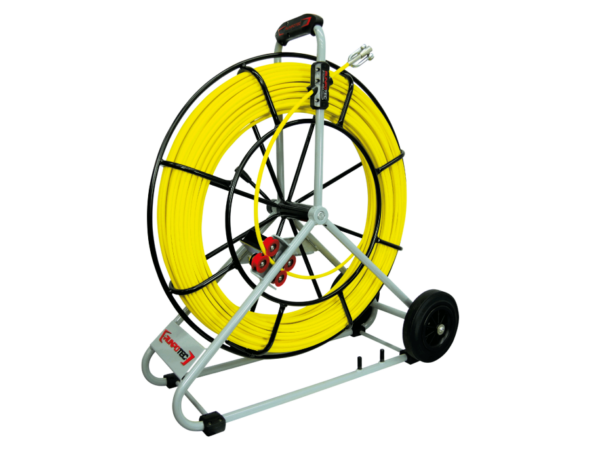

GF9 cable puller fiberglass rod (duct rodders) Ø 9 mm – RUNPOTEC RTG Ø 12 mm thread with robust steel reel (CDP/powder coated) Ø 730 mm incl. new double run-out system (automatic run-out brake and fast run-out), additional parking brake. The shackle also has a transition thread to RTG Ø 6 mm to adapt various guide rods (RUNPOSTICKS), guide probes, cable pulling grip (sock), RC 2 inspection camera and the like. Fiberglass rod breaking load 4500 kg, total breaking load 460 kg.
Optimal field of application: for pipe diameters 60 mm – 200 mm
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com.

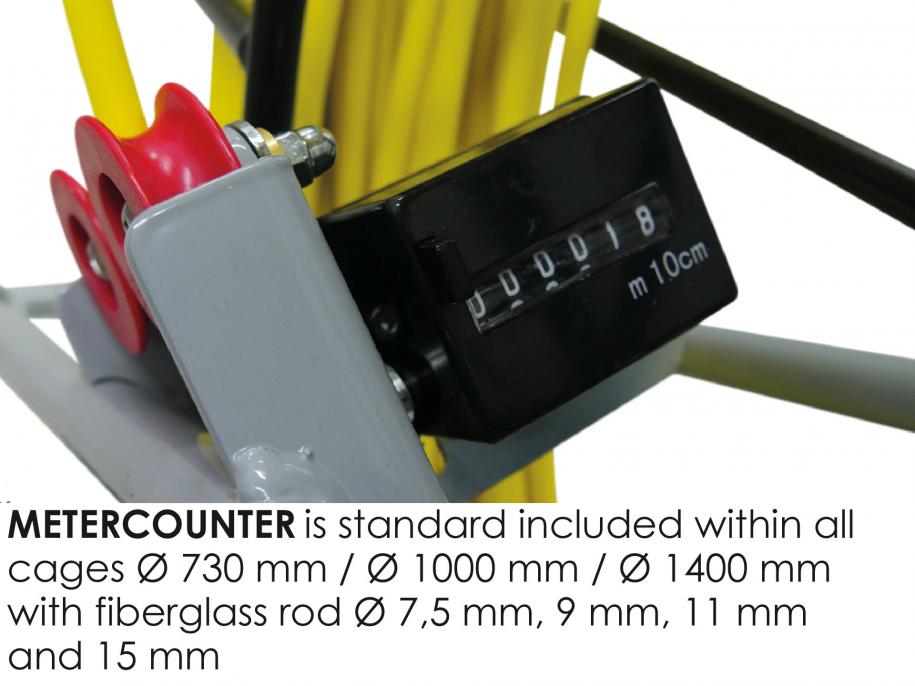

Scope of supply: 1 x GF9 fiberglass rod Ø 9 mm, Length: 40 m, ending joint with RUNPOTEC thread Ø 12 mm on both sides (start/end), 1 x mobile steel reel Ø 730 mm incl. double run-out system, 1 x metercounter, 1 x shackle
Optimal field of application: for pipe diameters 60 mm – 200 mm
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com.
Scope of supply: 1 x GF9 fiberglass rod Ø 9 mm, Length: 40 m, ending joint with RUNPOTEC thread Ø 12 mm on both sides (start/end), 1 x mobile steel reel Ø 730 mm incl. double run-out system, 1 x metercounter, 1 x shackle
Technical Data
| Dimensions: | L 840 x B 920 x H 410 mm |
| Length: | 40 Meter |
| Bending radius: | 620 mm |
| Recommended tube-Ø: | 60 – 200 mm |
| Weight: | 10,70 kg |
| Total tension load: | 460 kg |
| Material: | fiberglass core with PP sheath |
| Ø Rod: | 9 mm |
| EAN-Code: | 9120045473902 |
Scope Of Supply
1 x GF9 fiberglass rod Ø 9 mm, Length: 40 m, ending joint with RUNPOTEC thread Ø 12 mm on both sides (start/end), 1 x mobile steel reel Ø 730 mm incl. double run-out system, 1 x metercounter, 1 x shackle
